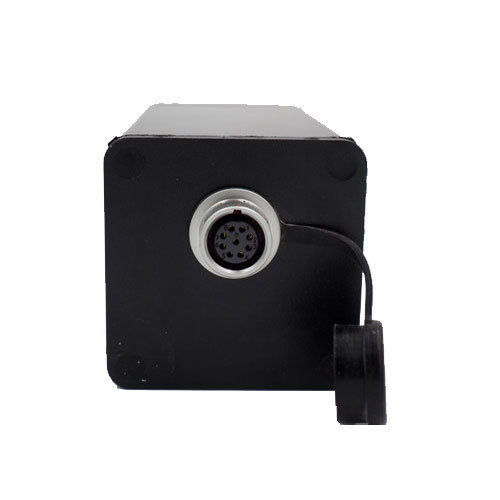

SKD-200D 200m Laser Distance Sensor
Measuring rang:0.05~200m ,
Measuring accuracy:±1mm,
Sampling Frequency20Hz
Output:RS232/485 or Analog
Key words:
Laser Position Sensor
Laser Rangefinder Sensor
Classification:
Downloads:
Detailed Description
SKD-200D is a laser distance measurement sensor with long distance and high accuracy. Its measuring range arrives 0.05~200m, measuring accuracy (typical precision ±1mm).
The SKD-200D high precision distance laser sensor has a compact IP67 standard aluminum shell and it can be operated at -10-50℃ ambinet temperatures. Especially RS232/485 serial interface port is suitable for connecting the distance measurement laser sensor to a serial port of computer or other device which has serial ports, so it is designed for integration into your industrial applications.
Features
● Long detection range (0.05~200m)
● High measuring accuracy (typical precision ±1mm)
● Maximum sampling frequency 20Hz
● Good waterproof and dustproof performance with aluminum alloy shell (the highest level IP67)
● Easy to use
Automatic measurement by simple commands from computer
● Fast to install
Using 8 screws can be quickly and firmly installed
● Kinds of output type
RS232/485 serial data output
● Fully customized service based on 20+ years industry experience
Applications
● Traffic flow statistics.
● Vehicle collision avoidance and safety early warning.
● Other industrial measuring and controlled applications.
Click here to check more customer's applications https://www.top1sensor.com/Applications/7.html
DATASHEET
SKD-200D DATASHEET
|
Model no |
SKD-200D(RS232) |
|
Measuring Range |
0.05 to 200m① |
|
Measuring accuracy |
Typical : ±1mm |
|
Smallest unit displayed |
0.1mm |
|
Laser class |
2 |
|
Laser type |
635nm,＜1mW |
|
Laser beam diameter approx. |
6mm |
|
Measuring mode |
yes |
|
Operation mode |
commands by computer |
|
Output mode |
RS232 serial digital output |
|
Power supply |
DC 9~24V/1A |
|
Power consumption |
＜5W |
|
Temperature range |
-25℃ to 70℃ |
|
Dimension |
110.8 x 50 x 40 mm③ |
|
Weight |
225g |
① Use a target plate to increase the measurement range during daylight or if the target has poor reflection properties.
② The highest operating temperature is 40℃ when sensor works in continuous measuring mode. The operating temperature from -30℃ to 50℃or- 30℃ to 70℃ can be customized.
